HUB, STEEL, REAR, SPORTSMAN
(Hubs include studs and races, all other parts sold separately.) These hubs fit the Coleman IMCA-Sportsman floater rear housings and standard wide-5 bearings and seals. Designed for sportsman and limited late-model applications. Available in 5 x 5, 5 x 4-3/4” and 5 x 4-1/2” bolt patterns with 1/2” or 5/8” studs. Bolt on rotor plate mount fits all standard 8 bolt 7” B.C. rotors.

Item #: 140-400
Type:
Quantity:
More
Less

Price: $228.51
Email to a Friend
Add to Build List

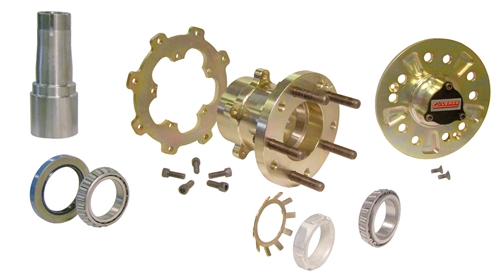

All associated parts and sub-assemblies for the above product are listed below:

Part #DescriptionRacer
140-400(A) Hub, Steel, 5 x 5”, 5 x 4-3/4”,1/2” Studs$228.51
140-420(A) Hub, Steel, 5 x 5”, 5 x 4-3/4”,5/8” Fine Studs$228.51
140-422(A) Hub, Steel, 5 x 5”, 5 x 4-3/4”,5/8” Coarse Studs$228.51
140-424(A) Hub, Steel, 5 x 4-1/2”,1/2” Studs$228.51
140-428(A) Hub, Steel, 5 x 4-1/2”,5/8” Coarse Studs$228.51
140-429(A) Hub, Steel, 5 x 4-1/2”,5/8” Fine Studs$228.51
21631(B) Drive Flange, Steel, 5 x 5”, 5 x 4-3/4”,1/2” Studs$84.40
21632(B) Drive Flange, Steel, 5 x 5”, 5 x 4-3/4”,5/8” Studs$84.40
21633(B) Drive Flange, Steel, 5 x 4-1/2”, 5/8” Studs$84.40
21634(B) Drive Flange, Steel, 5 x 4-1/2”,1/2” Studs$84.40
30111(B) Drive Flange, HT Steel, 5 x 5”, 1/2” Studs$105.10
30112(B) Drive Flange, HT Steel, 5 x 5”, 5/8” Studs$105.10
30113(B) Drive Flange, HT Steel, 5 x 4-3/4”, 1/2” Studs$105.10
30114(B) Drive Flange, HT Steel, 5 x 4-3/4”,5/8” Studs$105.10
17400(C) Bolt, Drive Flange, 1/4-20 x 5/8” Flat Head, Ea.$0.47
140-410(D) Rotor Mounting Plate$23.35
BR631(E) Rotor Plate Mounting Bolt, Ea.$0.58
CR-23755(F) Hub, Seal, Wide-5, Series IV, Series-V$11.58
18790(G) Bearing, Inner$39.37
18690(H) Bearing, Outer$43.83
AW-851(I) Axle Washer$3.99
AN-852(J) Axle Nut$13.85
140-110Drive Flange Gasket$1.90
19363Dust Cap, Drive Flange, Scalloped$6.10
802-100Dust Cap, Drive Flange, Round (Old Style)$5.04
802-132O-Ring, Dust Cap$1.35
