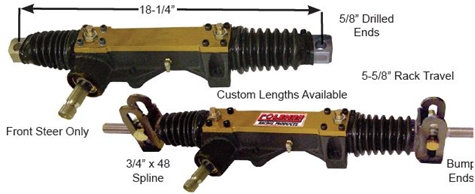

Rack And Pinion, Non-Power
This rack utilizes a square rack shaft that will not roll in the housing and features 20% more tooth contact, dual support bearings for smooth operation. Low 2-1/2” profile for clearance. Simple take apart design allows for easy rebuilding. Ratios can be changed by changing the pinion and wear button. "WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm."

Item #: 125-100-1.8
Type:
Quantity:
More
Less

Price: $464.69
Email to a Friend
Add to Build List



All associated parts and sub-assemblies for the above product are listed below:

Part #DescriptionRacer
125-100-1.81-7/8”, 5/8” Tie Rod$464.69
125-100-22”, 5/8” Tie Rod$464.69
125-100-2.52-1/2”, 5/8” Tie Rod$464.69
125-100-33”, 5/8” Tie Rod$464.69
306831-7/8”, Bump Adjustable$603.69
306842”, Bump Adjustable$603.69
306852-1/2”, Bump Adjustable$603.69
306863”, Bump Adjustable$603.69
125-107Pinion, 1-7/8”$38.87
125-108Pinion, 2”$38.87
125-110Pinion, 2-1/2”$38.87
125-112Pinion, 3”$38.87
125-103AWear Button, 1-7/8” .020 Thick$10.97
125-103BWear Button, 2” .050 Thick$10.97
125-103CWear Button, 2-1/2” .105 Thick$10.97
125-103DWear Button, 3” .180 Thick$10.97
1630Bearing, Pinion, Outer$13.36
6201Bearing, Pinion, Inner$5.96
3000-156Snap Ring, Outer Bearing Retainer$3.51
